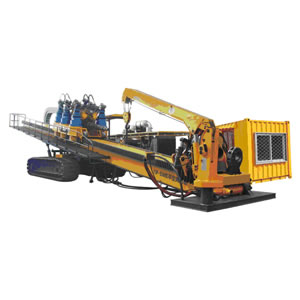

FDP-550 Horizontal Directional Drilling Rig
FDP-550
FDP-550 Horizontal Directional Drill Rig Main Parameters
Feeding (traveling)
Max. Feeding / pulling capacity: 5500KN
Feeding / pulling system: rack and pinion
Traveling driven by six gears, 2 shifts step less adjustable. 1st shift: 7.8 m/min
2nd shift: 30 m/min
Rotation of Horizontal Directional Drill Rig FDP-550
Rotating system:: Gear transmission, step less adjustable.
I shift torque: 120000Nm@40r/min
II shift torque: 60000Nm@84r/min
Power of Horizontal Directional Drill Rig FDP-550
Manufacturer: Cummins, Chongqing
Ratings: Dual engine 784kw (1050hp)
Running state: Feeding / pulling and rotating could achieve the max. Performance parameters above.
Hydraulic system
Close type system for feeding, pulling and rotating, open type load-sensing system for auxiliary circuit.
Operation Cabin
for Horizontal Directional Drill Rig FDP-550
With air conditioner and angle-adjustable control panel.
Chassis
On crawlers
Crane
for Horizontal Directional Drill Rig FDP-550
4T straight arm crane
Shackles
Adjustable distance, accurate and reliable screwing-off, automatic centering.
Max. screwing on torque: 150000Nm
Max. screwing off torque: 300000Nm
Drilling angle 8°~  16°
Accessory Pressure, flow rate, rotating speed etc. could be seen in operation cabin for easier analysis while drilling.
