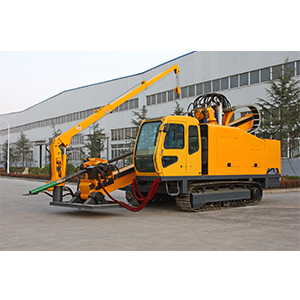

FDP-68 Horizontal Directional Drilling Rig

Home » Products » Drilling Rig » HDD Drill Rig » FDP-68 Horizontal Directional Drilling Rig
FDP-60 Horizontal Directional Drilling Rig

Main Structure Features:
1. FDP-68 horizontal directional drilling rig is fully hydraulic-driven. It is attractive in appearance, and uses wired remote control method. Its main components are from well-known brands home and abroad.
2. This heavy duty HDD rig is featured by famous diesel engine with low emission and noise and international-leading control technique, suitable for working in urban area. Power consumption is reduced to the lowest level under the non-loading working condition.
3. The rotation of drill head is driven by four hydraulic motors with large torque and gear 2 stepless speed adjustment.
4. Push/pull of drill head is driven by four motors with reducer. Rack and pinion transmission structure ensures the high stability and efficiency of the horizontal directional drilling rig.
5. Mud pump of the heavy duty HDD rig is hydraulically-driven and in mechanical transmission form. Pressure and displacement of the pump can be flexibly adjusted.
6. This horizontal directional drilling rig is equipped with wireless guide device for easy operation.
7. Complete set of drilling tools, including Φ102 × 5000mm drill rig and 2t crane.
