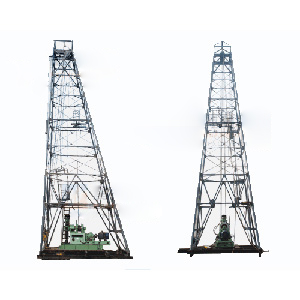

HCX-18, SGZ-18 Drill Derrick

HCX-18, SGZ-18 Drill Derrick

Feature of HCX-18
1. The derrick is well structured. Its story height is 1.7 m. The weight of is light. HCX-18 derrick is convenient to assemble in a short time.
2. It has a large payload capacity. This drill derrick can be used for vertical hole drilling and inclined hole drilling. The height for the vertical hole drilling is 1500m and the inclined, 1200m.
3. The HCX-18 drill derrick enjoys high adaptability. Its steel-made pedestal can be applied to various vertical drilling rigs from 1000m to 1500m.
4. The pedestal of the derrick takes up little floor area. The cost of excavating and leveling ground is low. The derrick is suitable for the mountain area.

Specification of HCX-18

Nominal Height of Derrick 18m
 Max. Static Load of Crown Block 320Kn
 Length of Stand 3×4.5 or 4×3
 Inclined Angle 75-90°
Nominal Area of Pedestal 4.5m ×5.8m
Number of Crown Block 3
Max. Load of Hanging Cage 0.8 Kn
Weight 5480 kg

Feature of SGZ-18 Drill Derrick
1. The drill derrick is properly structure. Its story height is 1.7m. Its installation is effortless and fast.
2. It has large payload capacity. It meets the lifting requirement for the 1500m, vertical hole drilling.
3. The SGZ-18 derrick is fairly adaptable. It can be used to the numerous vertical drilling rigs from 1000m to 1500m.
4. The derrick covers little floor area. And the excavation and leveling ground costs lowly. It is suitable for the mountain area.

Specification of SGZ-18
Nominal Height of Derrick 18m
Max. Static Load of Crown Block 300 Kn
Length of Stand 3×4.5 or 4×3
Inclined Angle 90°
Nominal Area of Pedestal 4.5m ×4.5m
Number of Crown Block 4
Max. Load of Hanging Cage 0.8 Kn
Weight 5300kg
