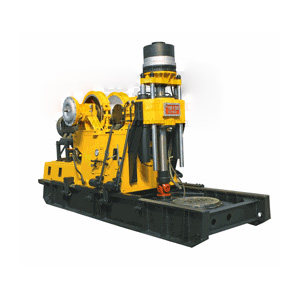

HXY-8B Core Drilling Rig
Brief Introduction
The type of HXY-8B core drill rig is a kind of core drill rig for medium and deep hole drilling using diamond and carbide-tipped bits, with mechanical transmission, spindle rotation, hydraulic feeding. HXY-8B is a diamond drilling rig. The drill rigs can be applied to metallic and nonmetallic solid mineral deposits prospecting; shallow strata oil and natural gas exploration. They could be used widely in geology, metallurgy, coal, hydrogeology, hydrological well and engineering and other industries fields. The HXY-8B could be used as a diamond drilling machine. They are the priority selection equipments and suitable for medium and deep depth hole drilling at present in China.
Feature
The HXY-8B spindle type core drilling rig is hydraulic-fed, mechanical transmitted and spindle rotated. It has large and rational range of rotary speed. Its hoister is horizontally arranged and has powerful lifting capacity. Equipped with hydraulic brake, this diamond drilling rig can be stopped easily and quickly. It has large output torque and power unit. It is easy, reliable and safe in operation.
Application
The HXY-8B diamond drilling rig applies to the following fields: geology, metallurgy, coal, hydrogeology, hydrological, engineering and others. It can be used to metallic and non-metallic solid mineral deposits prospecting; shallow oil and natural gas exploration. Beside, it is for medium and large depth hole drilling by using diamond and carbide-tipped bits
Specifications:
| Drilling Depth | 1000 m—3200 m(3280—10496 feet) | |
| Rotate speed (rpm) | Clockwise rotation rates | 79,136,121,363,220,379,589,1011 |
| Anti-clockwise rotation rates | 51,142 | |
| Turn table speed (rpm) of the diamond drilling rig | Clockwise rotation rates | 27,46,72,124,75,130,202,347 |
| Anti-clockwise rotation rates | 17,48 | |
| Diameter of drilling rod of diamond drilling rig | Ф50,Ф60,Ф71,Ф89,Ф114 mm (Ф1.97,Ф2.36,Ф2.80,Ф3.50,Ф4.49 inch) | |
| Spindle stroke | 800 mm(31.5 inch) | |
| Shift range | 690 mm(27.2 inch) | |
| Max. hoisting force of the diamond drilling rig | 300 KN(67440 lbf) | |
| Max. pressuring force | 141 KN(31697 lbf) | |
| Max. single-wire hoisting force | 125 KN(28100 lbf) | |
| Max. content of winding drum | 120 m(394 feet) | |
| Steel wire size of the diamond drilling rig | 21.5 mm(0.85 inch) | |
| Hoisting Speed | 0.663,1.09,1.693,2.90,1.761,3.034,4.713,8.803m/s (2.17,3.58,5.55,9.51,5.78,9.95,15.46,28.87 feet/s) | |
| Turn table Aperture | Ф395 mm (Ф15.55 inch) | |
| Electromotor model of the diamond drilling rig | Y2-280M-4 | |
| Electromotor output | 90 kw(122HP) | |
| Electromotor Rotation rate | 1480 r/min | |
| Diesel Engine model | Cummins 6BTA5.9-C180 | |
| Diesel Engine output of the diamond drilling rig | 132kw(180HP) | |
| Diesel Engine rotation rate | 1900 r/min | |
| Dimensions | With electromotor 4413×1692×2653 mm (173.7×66.6×104.5 inch) | |
| With diesel engine 4413×1892×2803mm (173.7×74.5×110.4 inch) | ||
| Weight of the diamond drilling rig | 10100 kg(22270 lb) | |
