FDP-15L (Stopped Production) Horizontal Directional Drilling Rig

Home » Products » Drilling Rig » HDD Drill Rig » FDP-15L (Stopped Production) Horizontal Directional Drilling Rig

Description:

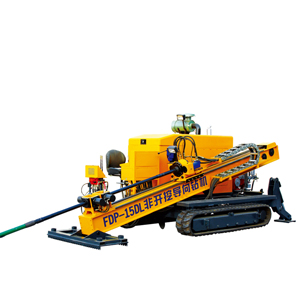

The FDP-15L (Stopped Production) is a full hydraulic horizontal directional drilling rig (hydraulic HDD rig) self-propelled with rubber crawler belts. With advanced and compact structure, high efficiency, low oil temperature, main hydraulic components, motor and mud pump all selected and adopted from domestic famous-brand products as auxiliary equipments, equipped with durable rubber belts of crawlers, the hydraulic horizontal directional drilling rig (hydraulic HDD rig) is suitable for moving in the city. With movable mast, the hydraulic HDD rig is guaranteed to drill within the full angle scope. It is in good stability with graceful structure.

Parameter:

The Main Machine of Horizontal Directional Drilling Rig
Power of Engine 66.2 KW(89HP) (2200r/min)
Max. Push capacity 75KN (16860 lbf)
Max. Pull capacity 150KN (33720 lbf)
Rated Torque 4200 N·M(3096 lbf·ft)
Hollow Spindle RPM Lower 0-60r/min
High 0-120r/min
Feeding Stroke 3500 mm(137.8 inch)
Diameter of Guide Hole Ф80 mm(3.15 inch)
Drilling Angle of hydraulic HDD rig 0°—20°
Pressure of hydraulic system 20-25Mpa(2901-3626 psi)
Traveling speed 2.5 km/h (8200 feet/h)
Structural Style integrated with rubber crawler and mud pump
Dimension (L×W×H) 5800×2050×2380 mm(228×81×94 inch)
Weight of hydraulic HDD rig 6100 kg(13450 lb)
Mud Pump of Horizontal Directional Drilling Rig
Specification BW-160A
Max. Discharge 160 L/min(42.3 US Gallons/min)
Peak Pressure of hydraulic HDD rig pump 10 Mpa(1450 psi)
Mud Process System of Horizontal Directional Drilling Rig
Mud Tank 1.5M3 (53 feet3)
Drilling Tools and Auxiliary System of Horizontal Directional Drilling Rig
Specification of Rod Ф60×3000 mm(Ф2.36×118 inch)
Guide Bit of hydraulic HDD rig Ф80 mm(3.15 inch)
Reamer Ф179,Ф259,Ф313,Ф365,Ф417mm (Ф7.05,Ф10.2,Ф12.32,Ф14.37,Ф16.42 inch)
Distributor 25T(55125 lb)
Tracker Optional Part
Hydraulic anchoring and auto loading system optional part
